Exporting to PowerCad-5

This command loads PowerCad-5 and exports the boards, their connections and their loads to PowerCad-5 for further detailed electrical design. Either the planning loads or the connected loads can be exported to PowerCad-5. PowerCad-M only exports to PowerCad-5 version 5.0.75.14 or greater.

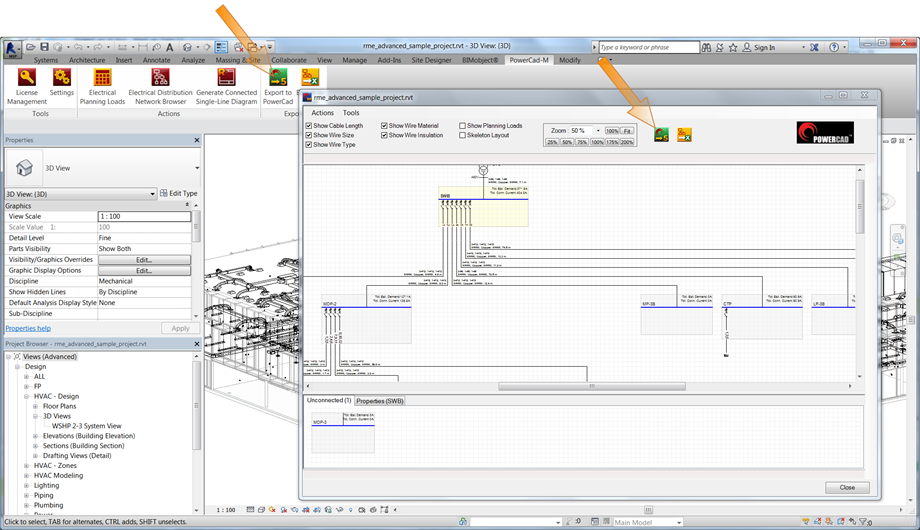

1. In either the PowerCad-M ribbon or from within the live distribution diagram select the export to PowerCad-5 icon.

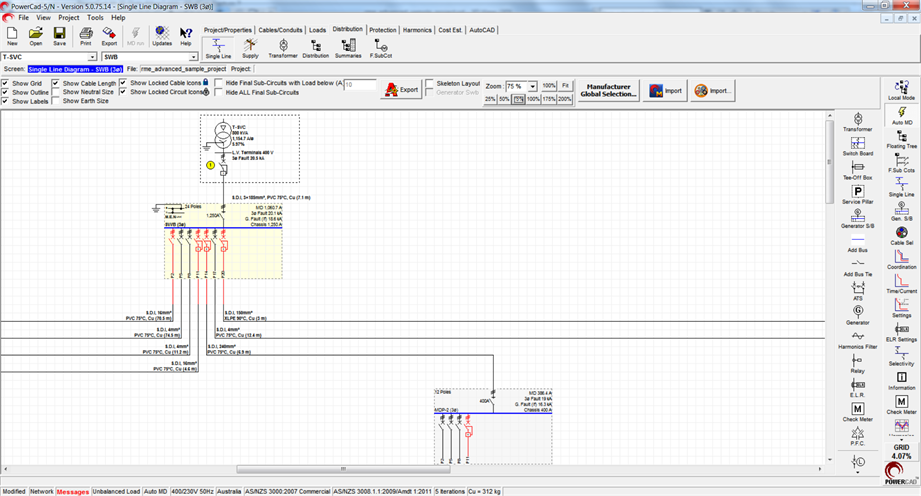

2. PowerCad-5 will load and you model will appear.



For more info on PowerCad-5 please visit our website www.PowerCad.com.au. Requires PowerCad-5 version 5.0.75.14 or later.
