Panel naming function in the Electrical Distribution Network Browser

PowerCad-M includes a panel naming tool that makes naming panel simple.

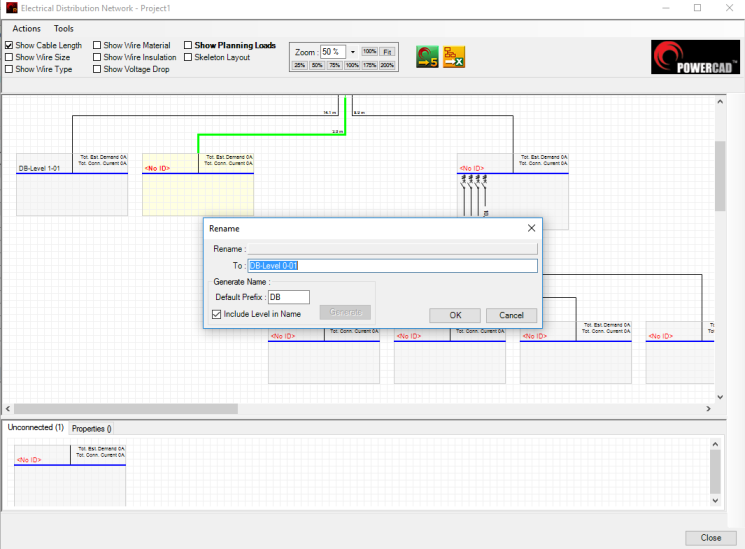

Right click on any board either on the diagram or in the unconnected section and select Rename Panelboard .

Error a Default Prefix and check the Include Level in Name check-box if you want the building level that the board is on, included in the panel name. PowerCad-M will save these settings. The next panel that you rename will use these settings and index the number at the end of the name.
