Exporting the Electrical BIM data to Excel

From within PowerCad-M you can export two different data sets to a file format readable by Microsoft Excel. You can either export the Planning load data or the connected Panelboard data

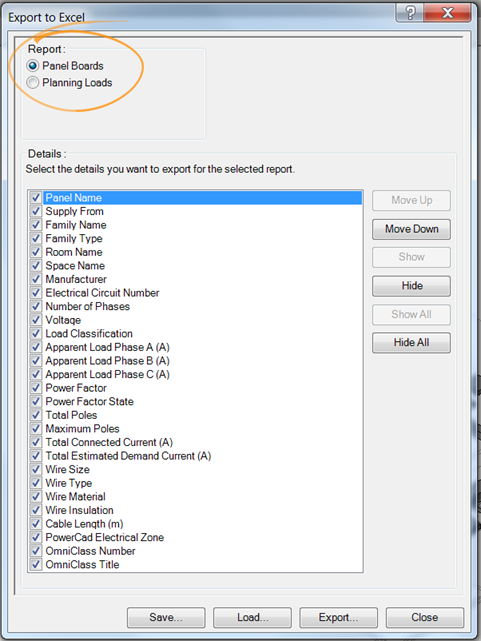

Select PowerCad-M > Export to Excel , now you can select to either export the Panelboard or Planning Load data

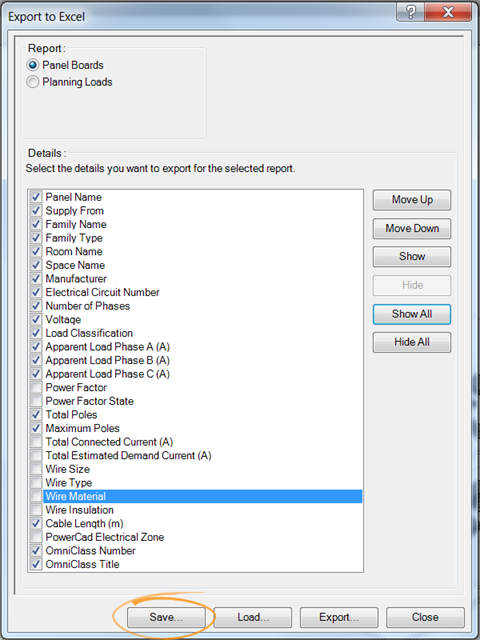

For this example we will export the Panelboard data and save our export settings.

Select the details that you want to export by clicking the check box next to the detail name.

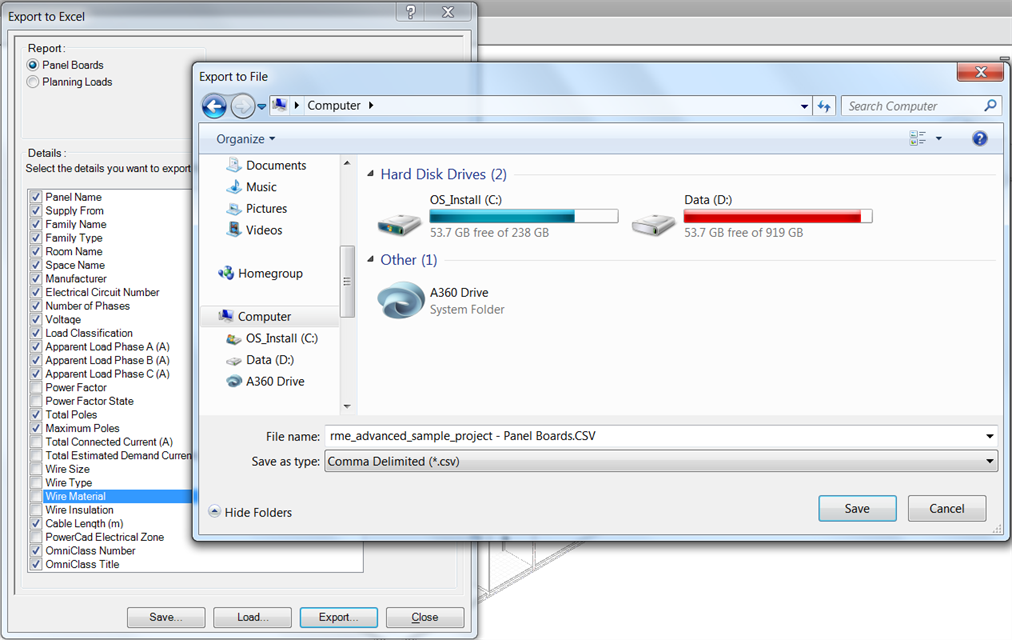

Now select Export and you will be prompted to choose a location to save the file.

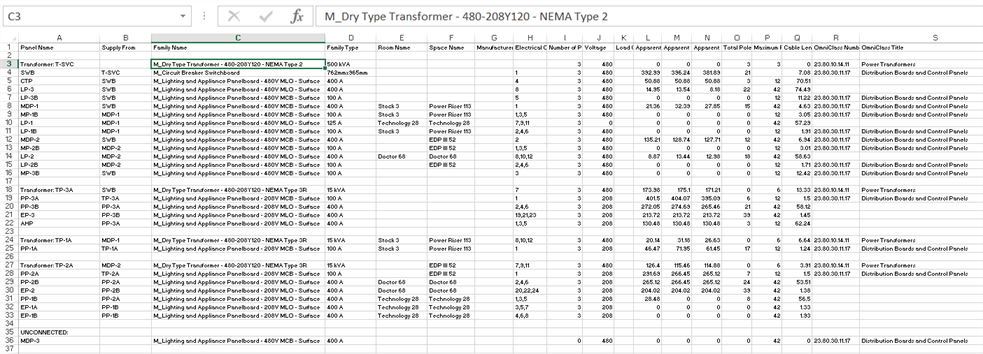

The *.CSV file can then be opened in Excel and formated.
